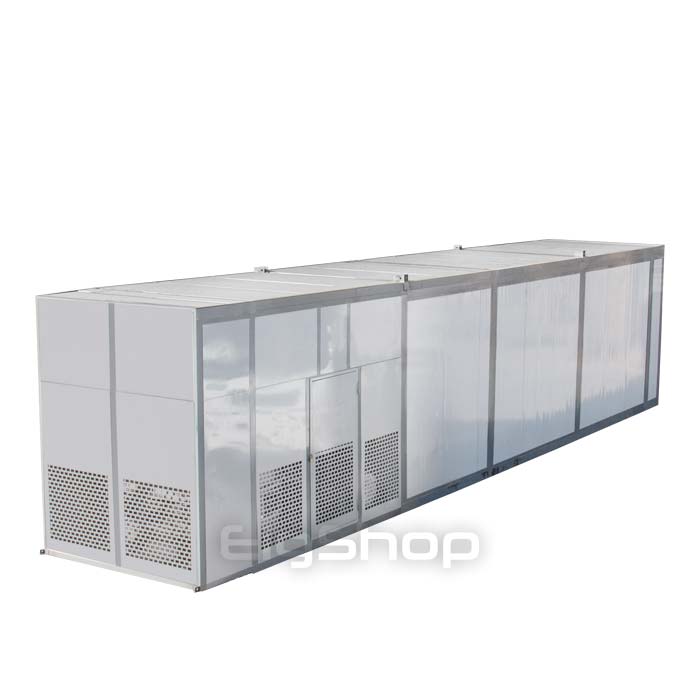

100 blocks\24h ice block machine
- Ice production in 24h: 100 ice blocks
- Producing 100 ice blocks every 24 hours
- Weight of one ice block: 23-25 kg
- Blocks have been made out of Galvanized material or steel (upon the customer’s request)
- Saltwater tank made from galvanized with the thickness of 3 to 4mm (available in 304 stainless steel, upon customer request)
- Using well-known motors such as Bitzer, Bock, DVM, etc. (upon customer request)
Buy 2.5 ton/day ice block machine
The 100 blocks\24h ice block machine is one the best-selling machines, which has been manufactured by EIG company using the newest technology and high-quality parts.
This product can produce 100 ice blocks in 24 hours, and the weight of every ice block is about 23 to 25 kg. The chassis is made from a 12 x 12 steel profile with protection coatings; all the components are properly implemented on the chassis.
Technical specifications of the 100 block ice maker machine
| Chassis | Profile 12 x 12 with protection coatings |
| Insulation | Injection foam |
| Motor | Bock, Bitzer, DVM (upon the customer’s request) |
| Motor power | 40 horsepower (more horsepower if requested) |
| Number of ice blocks | 100 |
| Material of blocks | Galvanized with thickness of 1.5 mm (can be ordered in steel) |
| Saltwater tank material | Galvanized with thickness of 3-4 mm (can be ordered in steel) |
| Pump | Using Iranian brands including Motogen, Electrogen, Iran pump or… |
| Evaporator | Copper matching the engine |
| Condenser | water or air (depending on conditions of the environment) |
| Control valves | Danfoss |
| Water filling system | Yes |
| Installing crane system | will be installed on the chassis upon customer request |
| Cabin | Made from sandwich panel with thickness of 10cm (upon customers’ request) |
| Cooling system gas type | Freon |
| Dimensions | Width 2.50 meters – length 12 meters and height 3.10 (with crane) |
| Guarantee | 1 year |
| After-sale service | 10 years |

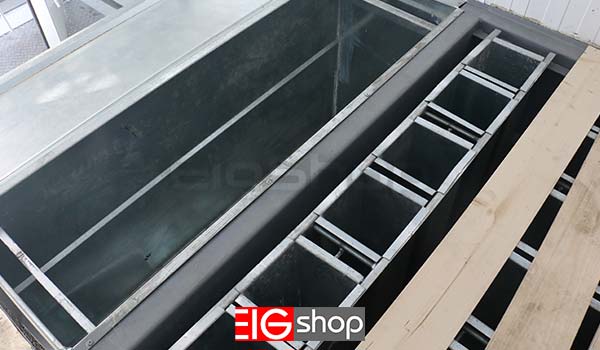

The EIG Company has designed and produced the saltwater tank using galvanized as the default material, and upon customers’ request, the company can use steel 304 (anti-rust) as a substitute.
Keep in mind that regardless of the saltwater tank’s material, the outer layer of this particular tank is made from stainless steel 304 to minimize the risk of being susceptible to rusting or corrosion.

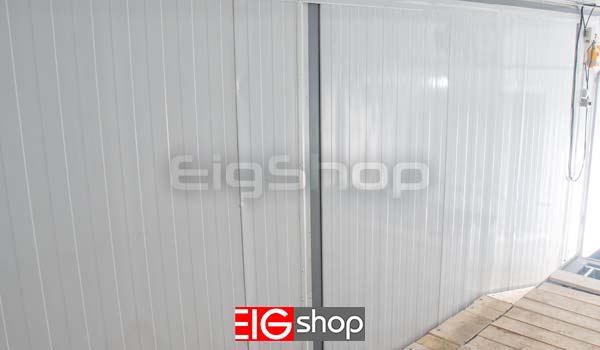

This company can also design a cabin to contain all the parts and systems inside, like a big rigid box. In other words, if customers request a “cabin” for the 100 blocks\24h ice block machine, there will be a roof and walls around the machine made from sandwich panels with a thickness of about 10 cm.
Upon the customer’s request, it is possible to design a room as a storage to contain all the ice blocks after being produced.
EIG factory has an independent, separate, and equipped unit to design and manufacture various cooling equipment, including industrial ice makers.
Using the newest European technology and equipment in the factory and the production line has made it possible for EIG ice block machines to be capable of working in hot weather without facing any challenges.
This brand has exported its cooling equipment to neighboring countries, including Arab countries and Iraq. The EIG Company offers 1 year of guarantee and a 10-year after-sales service
Related products
20 blocks\24h Ice block machine
- Ice production in 24h: 20 ice blocks (weight per block: 23-25 kg)
- Motor brands: Bitzer, Bock, DVM, etc.
- Motor type: semi hermetic (7.5 horsepower)
- Condenser: water or air (depending on climate conditions of the environment)
- Salt water tank made of galvanized (also orderable in: steel)
- Crane system and automatic water filling system
200 blocks\24h ice block machine
- Chassis made out of 12 x 12 steel profile with protection coatings (anti-rust)
- Installing 2 powerful and high-quality motors: Bitzer, Bock, DVM, etc. (upon customer request)
- Power provided by 2 motors for the cooling system: 40 horsepower
- Condenser description and type: water or air (depending on the climate conditions of the environment)
- Galvanized material saltwater tank with a thickness of 3 to 4mm (can be provided in 304 stainless steel, upon customer request)
- Installing electric crane on the chassis to move the ice blocks (upon customer request)
- Equipped with automatic water filling system
- Offering one year of guarantee and ten years of after-sale service
30 blocks\24h Ice block machine
- Ice production in 12h: 30 ice blocks (60 ice blocks in 24h)
- Weight per ice block: 23-25 kg
- Using recognized motor brands like Bitzer, Bock, DVM, etc. (upon customer request)
- 10 to 15 horsepower Semi hermetic motor (depending on climate conditions of the environment)
- Block ice material: galvanized (also orderable in: steel)
- installing crane (upon customer request)
40 blocks\24h ice block machine
- Ice production in 24h: 40 ice blocks (80 ice blocks in 24h)
- motor brands: Bitzer, Bock, DVM, etc. (upon customer request)
- Using 15 to 20 horsepower Semi hermetic motor
- Salt water tank made from galvanized (available in steel, upon customer request)
- installing electric crane to optimize ice making process (upon customer request)
- Equipped with water filling system
50 blocks\24h Ice block machine
- - Ice production in 24h: 50 ice blocks (Weight of each block: 23-25 kg)
- - Using different motors such as Bitzer, Bock, DVM, etc. (upon customer request)
- - 10 to 15 horsepower Semi hermetic motor
- - Salt water tank made of galvanized (also orderable in: steel)
- - Block ice thickness: 1.5 mm (also orderable in: steel)
- - Saltwater tank's outer layer made of 304 stainless steel (austenitic and non-magnetic)
- - Insulation and filling gaps by using Injection foam
60 blocks per 24 hours ice block machine
- Ice production in 24h: 60 ice blocks
- Weight of each ice blocks: 23 to 25 (kg)
- Material of the blocks: Galvanized or steel (upon the customer's request)
- Motor used in this machine: Bitzer, Bock, DVM, etc. (upon customer request)
- Motor power: 15 to 20 horsepower (Type: Semi hermetic)
- Offering 1 year of guarantee and 10 years of After-sale service
Immobile ice block machine (500 to 800 ice blocks per 24h)
• Designed and manufactured in capacities of 500 ice blocks and 800 ice blocks
• Ice production capacity: 500 to 800 ice blocks per 24 hours
• Weight of each ice blocks: 23 up to 25 Kilograms
• Horsepower of motor: 150 HP up to 300 HP (depending on the capacity of the machine)
• Condenser: water or air (depending on the climate conditions of the environment)
• Installing electric crane (upon customer request)
• Saltwater tank material: Galvanized with a thickness of 4 to 6mm (Also could be manufactured using 304 stainless steel, upon customer request)
• Automatic water filling system
• Offering one year of guarantee and ten years of after-sale service
