30 blocks\24h Ice block machine
- Ice production in 12h: 30 ice blocks (60 ice blocks in 24h)
- Weight per ice block: 23-25 kg
- Using recognized motor brands like Bitzer, Bock, DVM, etc. (upon customer request)
- 10 to 15 horsepower Semi hermetic motor (depending on climate conditions of the environment)
- Block ice material: galvanized (also orderable in: steel)
- installing crane (upon customer request)
Buy small ice block machine | producing 30 ice blocks every 24 hours
30 blocks/12h ice block machine manufactured by EIG Company is capable of producing 30 blocks of ice every 24 hours, and each block’s weight is about 23 to 25 kg.

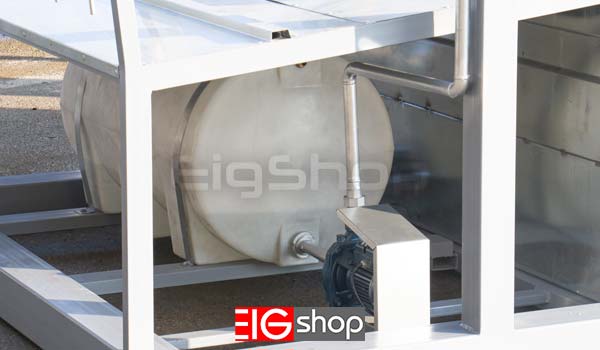

The ice-making process in this machine gets done by using saltwater tank. It is noteworthy to mention the saltwater tank is designed with 2 mm to 4 mm galvanized, but upon customer request, EIG company can replace galvanized with steel, which is due to high standards.
Technical specifications of 30 blocks/12h ice block machine:
| Chassis | Profile 12 x 12 |
| Compressor motor | Using recognized brands like Bock, Bitzer, DVM (upon the customer’s request) |
| Motor power | 10 to 15 horsepower |
| Saltwater tank material | Galvanized, 2 to 4 mm thick (also orderable in: steel) |
| Saltwater tank’s outer layer | 304 stainless steel (non-magnetic) |
| Welding type | CO2 |
| Evaporator | Copper suitable for the engine |
| Condenser | water or air (depending on environment) |
| Number of ice blocks | 30 |

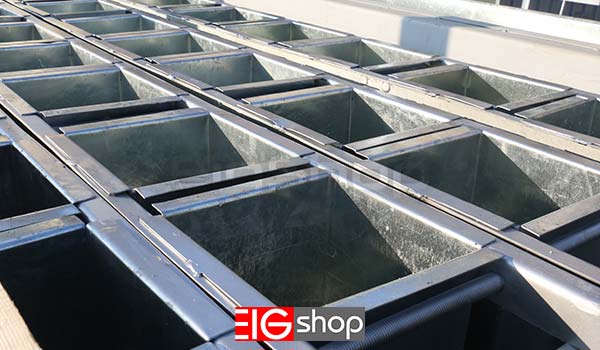

| Material of ice blocks | Galvanized 1.5 mm thick (also orderable in: steel) |
| Water compressor | Yes |
| Water filling system | Yes |
| Crane system | Yes |
| Insulation | Injection foam |
| Make-to-order time | 30 to 40 days |
| Dimensions | Width 2.40 meters – length 6.5 meters and height 3.10 (with crane) |
| Installing crane system | will be installed upon customer request |
| Guarantee | 1 year |
| After-sale service | 10 years |
Using a cooper evaporator matching function of the motor is another feature of this block ice machine since Copper is harder to crack than aluminum and cooper transfers heat better.
Also, depending on the climate conditions of the customer’s environment, EIG uses either an air condenser or a water condenser in this ice maker.
The ice block machine has a water filling and a drain pump system. Also, upon customer request, an electric crane with all the components will be installed on this product. To meet the need of customers, the EIG factory can manufacture 30 blocks/12h ice block machine with different body materials, that is, sandwich panels, upon customer’s request.
EIG factory has a shining history of nearly 30 years in manufacturing various types of ice block machines in different capacities to meet the need of the customers. These ice block machines are designed and made using modern equipment and new-generation components, therefore, operators can use them in environments with high temperatures. EIG ice block machines can be an excellent choice for many Arab countries such as Iraq.
Keep in mind that different parts and components of the 30 blocks/12h ice block machine can be customized, upon the customer’s request.
For more information, you can contact our experts:
| Email: sell@eig-shop.com | WhatsApp: +989144483188 | Tel: +989144483188 |
